Specifications
Starter Kit
Included SOM
VAR-SOM-AM35
Included Carrier Board
VAR-AM35CustomBoard
Display

7" WVGA LCD

Touch Panel

Resistive / Capacitive

Cables and Accessories
Ethernet Cable
RS232 Debug cable
12V Power Supply
USB Client cable
Boot/Rescue SD Cards
Carrier Board Design Package
Documentation and Sources DVD
Part number

VAR-DVK-AM35

System on Module
CPU Name

Texas Instruments AM3517

CPU Type

Cortex-A8

CPU Cores

1 Core

CPU Clock

600 MHz

Real-time processor

Built-in Real Time Clock

RAM

256 MB

NAND Flash

256 MB SLC NAND

Ethernet

 10 / 100 Mbps Ethernet

Touch panel

4-wire Touch

USB

"1st USB 2.0 Host controller
+ 2nd USB 2.0 Host controller"

Audio codec

Yes

OS support

Linux / Android / Windows Embedded Compact 7 installed / Windows CE 6 installed

Temperature

0 to 70°C

Part number

[tooltip]VAR_SOM_AM3517_256R_256N_EC_AC_TP_RT_UH1_UH2_CT[/tooltip]

More Info
Carrier Board
SODIMM 200 socket

Supporting the VAR-SOM-AM35 (not included)

RGB

18-bit RGB parallel display interface (40-pin FFC/FPC connector for 7" WVGA LCD)

LVDS

18-bit

Composite

RCA connector

HDMI

DVI

Resistive

4-wire touch panel, 4-pin FFC/FPC

Capacitive

Capacitive touch panel, header

Line - out

3.5 mm connector

Line - in

3.5 mm connector

SD-CARD

SD Card Socket

USB Host

3 ports, Type A connector

VAR-DVK-AM35_LO

VAR-SOM-AM35 evaluation kit with Linux installed

VAR-DVK-AM35_CE7

VAR-SOM-AM35 evaluation kit with Windows Embedded Compact 7 installed

VAR-DVK-AM35_CO

VAR-SOM-AM35 evaluation kit with Windows CE 6 installed

VAR-DVK-AM35_AO

VAR-SOM-AM35 evaluation kit with Android installed

Support
Supporting you every step of the way - from ideation to launch and beyond. Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Documentation

Our Long-Standing Partnerships

Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.
Meet Our Partners
Accessories

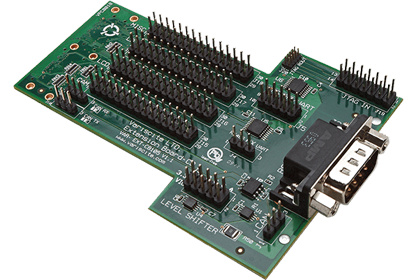

VAR-EXT-CB105
