DART-SD410
Qualcomm Snapdragon 410
The DART-SD410 is based on the Qualcomm Snapdragon 410 (APQ8016), 1.2 GHz quad-core Cortex-A53™ processor. The DART-SD410 offers the perfect combination of high performance and low power consumption, packed in a tiny 25x 43 mm package. This unique combination makes this System on Module / Computer on Module an ideal solution for portable, battery-operated devices as well as multimedia intensive applications. The DART-SD410 highly integrated connectivity includes WiFi/Bluetooth, GPS, USB, and A/V interfaces. Furthermore, the system supports full -25 to 85c operating temperatures.
Highlights
CPU
1.2GHz Quad Cortex™-A53 Qualcomm Snapdragon 410
Dimensions
Only 42 x 25 mm
Certified WiFi/Bluetooth
802.11 b/g/n and 4.1 EDR + BLE
Temperature range
-25 to 85°C
Multimedia
GPU, 1080p30 Video Acceleration
Product Longevity
2024
Power Consumption
Only 4 mA in suspend
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
Qualcomm Snapdragon 410 (APQ8016)
CPU Type
Cortex™-A53
CPU Cores
4 Cores
CPU Clock (Max)
1.2 GHz
Integer performance (DMIPS)
Up to 11,040
RAM
1024 - 2048 MB LPDDR3
eMMC
8 - 16 GB
Multimedia
2D/3D Graphics Acceleration
Adreno 306 Accelerated 2D and 3D
Video Encode / Decode
1080p30 H.264 Encode / Decode
Camera Interfaces
Dual MIPI CSI up to 13Mpixel
Display
HDMI
On-Carrier (via bridge)
LVDS
On-Carrier (via bridge)
DSI
1920 x 1080, 24bits
Touch controller
Capacitive
Audio
Headphone driver
Yes
Microphone
Digital, Analog
Line In/Out
Speaker
Connectivity
SD / MMC
x1
USB Host / Device
USB 2.0 : 1x OTG
UART
x2, up to 4 Mbps
I2C
x6
SPI
x6
RTC
On carrier
Networking
Ethernet
10/100/1000 Mbps - On-Carrier (via bridge)
WiFi
802.11 b/g/n
Bluetooth
4.1 EDR + BLE
Linux
Yocto, Debian
Android
Yes
Mechanical Specifications
Dimensions (W x L)
42 x 25 mm
Electronic Specifications
Supply voltage
3.7 - 4.5 V
Digital I/O voltage
1.8 V
Environmental Specifications
Extended operating temperature
-25 to 85°C
Storage temperature
-40 to 85°C
Storage humidity
5% to 95%
DART-SD410_[xxxxR_xxG]_[WB]_[GP]
[xxxxR_xxG]
RAM / eMMC Capacity:
[1024R_8G]: 1024 MB LPDDR3 and 8GB eMMC
[2048R_16G]: 2048 MB LPDDR3 and 16 GB eMMC
[1024R_8G]: 1024 MB LPDDR3 and 8GB eMMC
[2048R_16G]: 2048 MB LPDDR3 and 16 GB eMMC
[WB]
WB: Built-in WiFi 802.11 b/g/n + Bluetooth 4.1/BLE
[GP]
GPS
Our Long-Standing Partnerships
Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.
Evaluation Kit

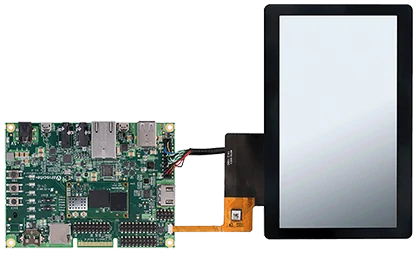

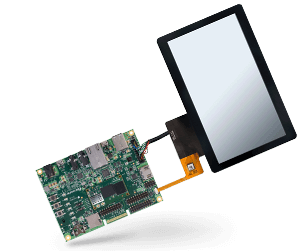

DART-SD410 Evaluation Kits
