Specifications
Starter Kit

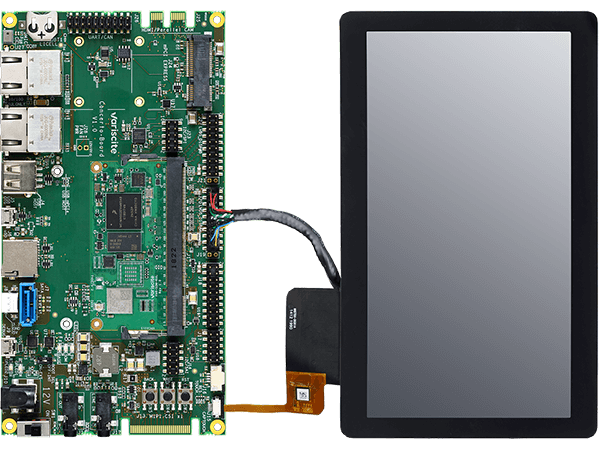

Development Kit
Included SOM
VAR-SOM-6UL
VAR-SOM-6UL
Included Carrier Board
Concerto-Board
Concerto-Board
Display

7" WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Antenna
Boot/Rescue SD Cards
Carrier Board Design Package
Part number

VAR-STK-VS6UL

VAR-DVK-VS6UL

VAR-SOM-6UL with 512MB NAND & WiFi 802.11b/g/n
VAR-SOM-6UL with 8GB eMMC & WiFi 802.11b/g/n
System on Module
CPU Name
CPU Type

Cortex-A7

Cortex-A7

CPU Cores

1

1

CPU Clock

900 MHz

900 MHz

RAM

512 MB

512 MB

NAND Flash

512 MB SLC NAND

eMMC

8 GB

Ethernet

2x 10/100 Mbps

2x 10/100 Mbps

WiFi

Certified WiFi 802.11 b/g/n

Certified WiFi 802.11 b/g/n

Bluetooth

5.1 / BLE

5.1 / BLE

Audio codec

Yes

Yes

OS support

Linux

Linux

Temperature

0 to 70°C

0 to 70°C

Part number

[tooltip]VAR-SOM-6UL_Y2_900C_512R_05N_AC_EC_TP_LD_WB_CT[/tooltip]

[tooltip]VAR-SOM-6UL_Y2_900C_512R_8N_AC_EC_TP_LD_WB_CT[/tooltip]

More Info

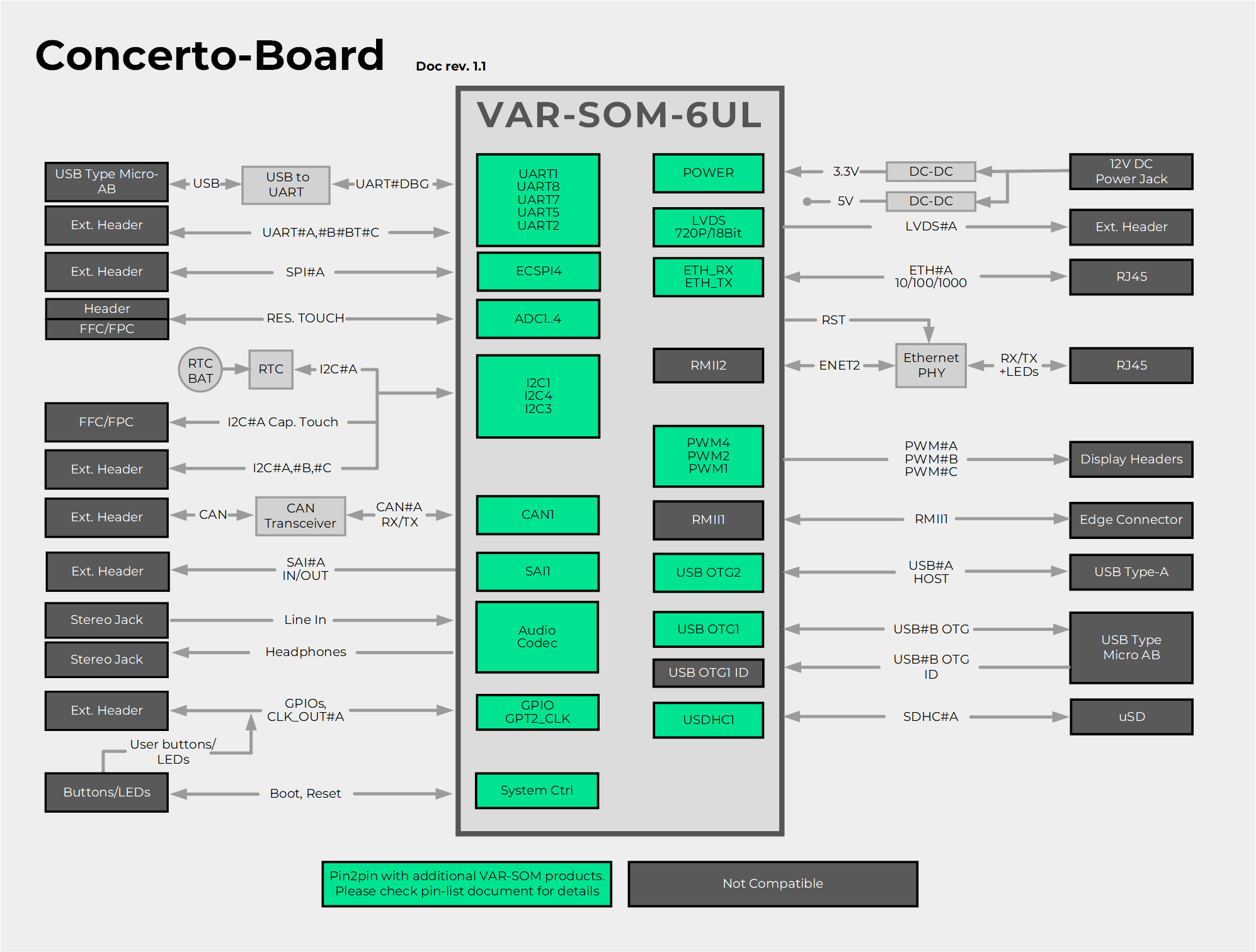

Concerto-Board
Carrier Board
SO-DIMM200

Supporting the VAR-SOM-6UL

LVDS

18-bit / 24-bit

Backlight Driver

PWM Control

Resistive touch panel

4-wire touch panel (4-pin FFC/FPC)

Capacitive touch panel

Capacitive touch panel (6-pin FFC/FPC)

Headphone

3.5 mm connector

Line - in

3.5 mm connector

Digital microphone

on-board

SD-CARD

SD Card Socket

Ethernet

2x 10/100 Mbps

zoom
VAR-[DVK / STK]-VS6UL_[X]O
VAR-STK-VS6UL_LO

Including VAR-SOM-6UL_Y2_900C_512R_05N_AC_EC_TP_LD_WB_CT

VAR-STK-VS6UL-E_LO

Including VAR-SOM-6UL_Y2_900C_512R_8N_AC_EC_TP_LD_WB_CT

VAR-DVK-VS6UL_LO

Including VAR-SOM-6UL_Y2_900C_512R_05N_AC_EC_TP_LD_WB_CT

VAR-DVK-VS6UL-E_LO

Including VAR-SOM-6UL_Y2_900C_512R_8N_AC_EC_TP_LD_WB_CT

Order the product online

Buy Now
