Specifications

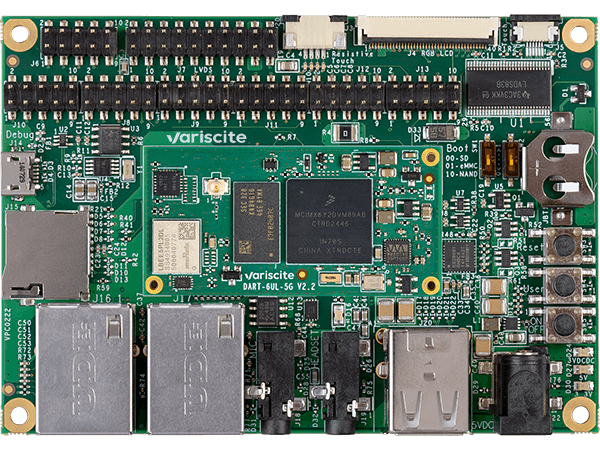

Starter Kit

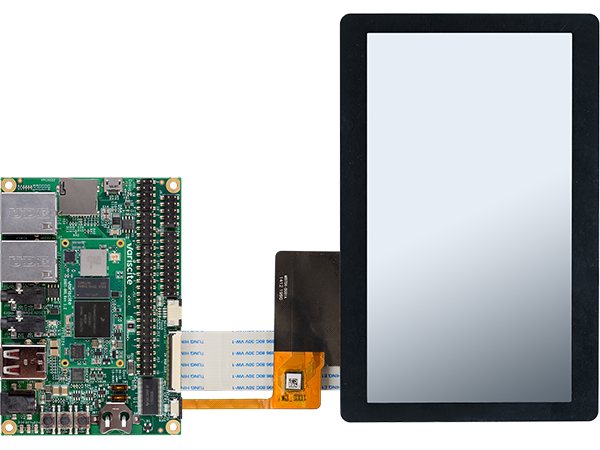

Development Kit
Included SOM

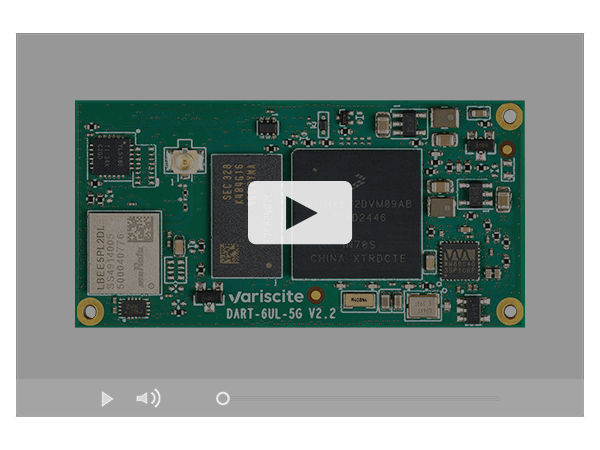

DART-6UL
DART-6UL
Included Carrier Board
VAR-6ULCustomBoard
VAR-6ULCustomBoard
Display

7" WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable
Ethernet Cable
5V Power Supply
Antenna
Boot/Rescue SD Cards
Carrier Board Design Package
Camera Module

Optional - VAR-EXT-CB6UL

Optional - VAR-EXT-CB6UL

Part number

VAR-STK-6UL

VAR-DVK-6UL

DART-6UL with 8GB eMMC
DART-6UL with 512MB NAND
System on Module
CPU Name

NXP i.MX6 UltraLite / i.MX 6ULL

NXP i.MX6 UltraLite / i.MX 6ULL

CPU Type

Cortex-A7

Cortex-A7

CPU Cores

1

1

CPU Clock

900 MHz

900 MHz

RAM

512 MB

512 MB

NAND Flash

512 MB SLC NAND

eMMC

8 GB

Ethernet

Ethernet PHY

Ethernet PHY

WiFi

Certified WiFi 6 dual band 802.11ax/ac/a/b/g/n

Certified WiFi 6 dual band 802.11ax/ac/a/b/g/n

Bluetooth

Bluetooth 5.4/ BLE

Bluetooth 5.4/ BLE

Audio codec

Yes

Yes

OS support

Linux

Linux

Temperature

0 to 70°C

0 to 70°C

Part number

DART-6UL-5G_V2_Y2_900C_512R_8N_AC_EC_WBD_CT

DART-6UL-5G_V2_Y2_900C_512R_05N_AC_EC_WBD_CT

More Info
VAR-6ULCustomBoard
Carrier Board
B2B socket

Supporting the DART-6UL (not included)

Parallel RGB

24 bit

LVDS

3 pair 18-bit

Capacitive

Capacitive touch panel, (6-pin FFC/FPC)

Resistive

Header

Headphone

3.5 mm connector

Line - in

3.5 mm connector

Digital microphone

on-board

Camera

Parallel CMOS sensor interface

SD-CARD

uSD Card Socket

USB Host

1 port, Type A connector

VAR-[DVK / STK]-DT6_[x]O
VAR-[STK / DVK]-6UL-5G_V2_LO

Including DART-6UL-5G_V2_Y2_900C_512R_05N_AC_EC_WBD_CT

VAR-[STK / DVK]-6UL-5G-E_V2_LO

Including DART-6UL-5G_V2_Y2_900C_512R_8N_AC_EC_WBD_CT

STK/DVK

STK: Starter kit
DVK: Development kit
