VAR-SOM-AM33
TI AM335x
Supporting the 1 GHz Sitara™ AM335x ARM Cortex-A8 processor from Texas Instruments (TI) with a rich 2D/3D graphics accelerator, The VAR-SOM-AM33 provides a low-cost powerful and flexible selection across the full spectrum of applications. the feature set includes -40 to 85°C temperature range and dual CAN bus make it ideal for industrial applications such as automotive, control systems, lighting, motor control and agriculture. With dual Ethernet, USB, touch controller, audio and WiFi/Bluetooth, the VAR-SOM-AM33 is a highly integrated System on Module / Computer on Module in a very attractive price range.
New: VAR-SOM-AM33_V2 with enhanced certified WiFi/Bluetooth module including optional Dual Band 2.4 / 5 GHz and MIMO with improved performance and effective bit rates reaching 100 Mbps.
Highlights
CPU
1GHz Cortex™-A8 Texas Instruments AM335x
Real-time CPU
Dual 200MHz PRU
Certified WiFi/Bluetooth
802.11 a/b/g/n + MIMO
Temperature range
-40 to 85°C
Multimedia
PowerVR SGX530 Accelerated 2D and 3D
Product Longevity
2030
Ethernet
1x 10/100Mbps + 1x 10/100/1000Mbps
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
Texas Instruments AM335x ( AM3354, AM3352, AM3358, AM3359 )
CPU Type
Cortex™-A8
CPU Cores
1 Core
CPU Clock (Max)
1.0 GHz
Integer performance (DMIPS)
Up to 1,440
RAM
128 - 512 MB DDR3
SLC NAND
128 - 1024 MB SLC NAND
Multimedia
2D/3D Graphics Acceleration
PowerVR SGX530 Accelerated 2D and 3D
Display
Parallel RGB
1400 x 1050 24-bit
Touch controller
Resistive, Capacitive
Audio
Headphone driver
Yes
Microphone
Analog
Line In/Out
Yes
Connectivity
SD / MMC
x2
USB Host / Device
USB 2.0 : 1x Host, 1x OTG
UART
x4, up to 3.6 Mbps
I2C
x2
SPI
x1
CAN Bus
x2
RTC
on-SoM
External Bus
GPMC
Networking
Ethernet
10/100 Mbps + 10/100/1000 RGMII
WiFi
Certified 802.11 a/b/g/n + MIMO
Bluetooth
5.1 + CSA2 support / BLE
Linux
Yocto
Mechanical Specifications
Dimensions (W x L)
67.8 x 38.6 mm
Electronic Specifications
Supply voltage
3.3 V
Digital I/O voltage
3.3 V
Environmental Specifications
Commercial operating temperature
0 to 70°C
Extended operating temperature
-20 to 70°C
Industrial operating temperature
-40 to 85°C
Storage temperature
-40 to 85°C
Storage humidity
5% to 95%
VAR-SOM-AM335[x]_V2_[xxxx]C_[xxx]R_[xxx]N_[AC]_[EC]_[W[B][D]]_[x]T_LO
AM335[x]:
CPU type: 2: AM3352 , 4 : AM3354 , 6 : AM3356 , 8 : AM3358
[xxxx]C:
Clock speed: 600 MHz : 600C, 800 MHz : 800C, 1 GHz : 1000C
[xxx]R:
RAM size: 128 MB : 128R,256 MB : 256R, 512 MB : 512R
[xxx]N:
NAND size: 128 MB : 128N, 256 MB : 256N, 512 MB : 512N, 1024 MB : 1024N
[AC]:
Audio Codec
[EC]:
10 / 100 Mbps Ethernet PHY
[W[B][D]]:
W: Certified Built-in WiFi 802.11 b/g/n
WB: Built-in certified WiFi 802.11 b/g/n + Bluetooth 5.1 + CSA2 support/BLE (CT/ET only)
WD: Built-in certified WiFi 802.11 a/b/g/n with MIMO
WBD: Built-in certified WiFi 802.11 a/b/g/n with MIMO + Bluetooth 5.1 + CSA2 support/BLE
WB: Built-in certified WiFi 802.11 b/g/n + Bluetooth 5.1 + CSA2 support/BLE (CT/ET only)
WD: Built-in certified WiFi 802.11 a/b/g/n with MIMO
WBD: Built-in certified WiFi 802.11 a/b/g/n with MIMO + Bluetooth 5.1 + CSA2 support/BLE
[x]T:
C : 0 to 70°C,E : -20 to 70°C, I : -40 to 85°C
Documentation
Our Long-Standing Partnerships
Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.
Evaluation Kit

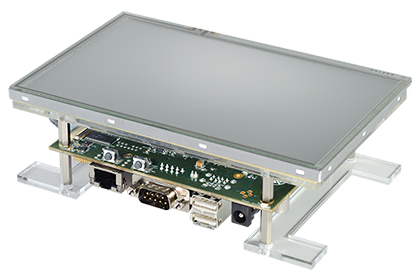

VAR-SOM-AM33 Evaluation Kits
