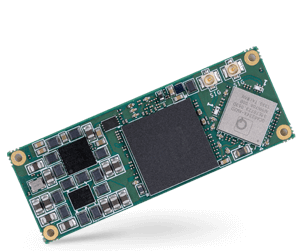

DART-SD800
Qualcomm Snapdragon 800
Measuring at just 20mm x 55mm, The DART-SD800 supports the Qualcomm Snapdragon™ 800 2.2 GHz quad Krait™ processor. With a staggering processing power and highly optimized power consumption Variscite have successfully delivered a truly mobile powerhouse into the embedded arena. High-resolution displays, advanced multimedia support and broad network compatibility are just some of the features that ensure a richer experience in various embedded segments and applications.
Highlights
CPU
Up to 2.2GHz Qualcomm Snapdragon™ 800 (APQ8074)
Multimedia
4K H.264 Decode, 4K H.264 Encode
Certified WiFi/Bluetooth
802.11 b/g/n + optional MIMO+Bluetooth/BLE 4.0
Display
HDMI, DSI
Memory
3072 MB LP-DDR3
USB Host / Device
USB 3.0 : 1x OTG USB 2.0 : 1x OTG
Temperature range
-20-85 C
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
Qualcomm Snapdragon™ 800 (APQ8074)
CPU Type
Krait™ 400
CPU Cores
4 cores
CPU Clock (Max)
2.2 GHz
RAM
3072 MB LP-DDR3
eMMC
64 GB eMMC
Multimedia
2D/3D Graphics Acceleration
Adreno 330
Video Encode / Decode
4K H.264 Decode, 4K H.264 Encode
Camera Interfaces
2x CSI
Display
HDMI
v1.4a
DSI
2x 2560 x 2048 24-bit
Audio
Headphone driver
Yes
Microphone
Analog / Digital
Digital audio serial interface
I2S
Line In/Out
Yes
Connectivity
SD / MMC
x2
USB Host / Device
USB 3.0 : 1x OTG USB 2.0 : 1x OTG
UART
up to x8, 4 Mbps
I2C
up to x8
SPI
up to x8
RTC
On SoM
Networking
WiFi
802.11 b/g/n + optional MIMO
Bluetooth
4.0
Linux
No
Android
Yes
Mechanical Specifications
SoM Interface
Board to Board, 240 pins
Dimensions (W x L)
55 x 20 mm
Electronic Specifications
Supply voltage
3.3 - 4.5 V
Digital I/O voltage
1.8 V
Environmental Specifications
Commercial temperature
0 to 70°C
Industrial temperature
-20 to 85°C
DART-SD800_[xxxx]R_[xxx]G_[WB]_[x]T
[xxx]R:
1024 MB : 1024R, 2048 MB : 2048R, 3072 MB : 3072R
[xxx]N:
4 GB : 4G, 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G
[WB]:
WiFi 802.11 b/g/n + Bluetooth 4.0
[x]T:
C : 0 to 70°C, I : -20 to 85°C
