The VAR-SOM-PX32 is a low-power, high-performance System On Module which serves as a building block and easily integrates into any embedded solution. It includes all vital peripherals/interfaces and is ready to run any embedded operating system such as Linux, WinCE and Windows Mobile.
- Home
System On Module- Marvell PXA320
- VAR-SOM-PX32 Marvell PXA320

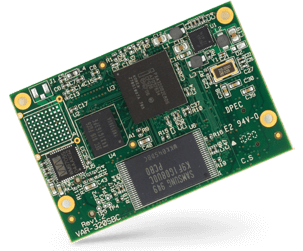

VAR-SOM-PX32
Marvell PXA320
Highlights
CPU
Up to 806MHzMarvell PXA-320
Multimedia
2D Graphics acceleration
Display
800 x 600 24bit
USB Host / Device
USB 2.0 : 1 x Host, 1 x OTG
Memory
64 - 256MB LP-DDR
Ethernet
10/100 Mbps
Temperature range
-20-70 C
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
Marvell PXA-320
CPU Type
ARM 9
CPU Cores
1 Core
CPU Clock (Max)
806 MHz
RAM
64 - 256MB LP-DDR
SLC NAND
128 - 256MB SLC NAND
Multimedia
2D/3D Graphics Acceleration
2D Graphics acceleration
Camera Interfaces
1 x CPI
Display
Parallel RGB
800 x 600 24bit
Touch controller
Resistive, Capacitive
Audio
Microphone
Analog
Line In/Out
Yes
Connectivity
USB Host / Device
USB 2.0 : 1 x Host, 1 x OTG
UART
3
I2C
2
SPI
1
One-Wire
1 Wire/HDQ
Networking
Ethernet
10/100 Mbps
Windows Embedded Compact
6.0 R3
Mechanical Specifications
Dimensions (W x L)
60.2 x 40.1 mm
Electronic Specifications
Supply voltage
3.3 V
Digital I/O voltage
3.3 V
Environmental Specifications
Commercial temperature
0 to 70°C
Extended temperature
-20 to 70°C
VAR-SOM-PX32_[xxx]C_[x]R_[x]N_[AC]_[EC]_[W]_[x]T
[xxx]C:
624- 624MHz, 806 - 806MHz
[xxx]R:
DDR Size: 64,128,256 MB
[xxx]N:
Nand flash size: 64, 128, 256MB
[EC]:
Ethernet Controller
[W]:
WiFi
[x]T:
C - Commercial Temperatures, E - Extended Temperatures
