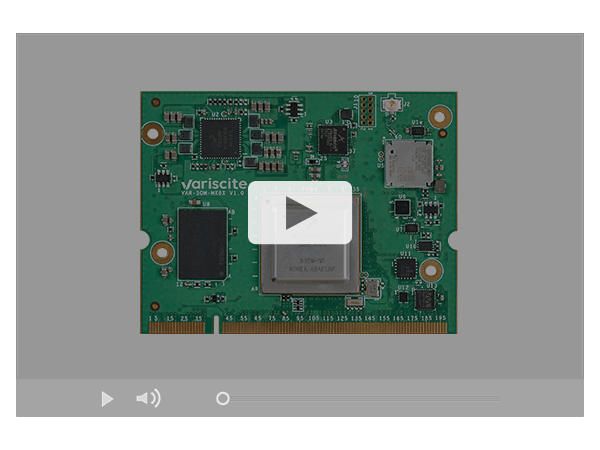

VAR-SOM-MX8X
Evaluation Kits

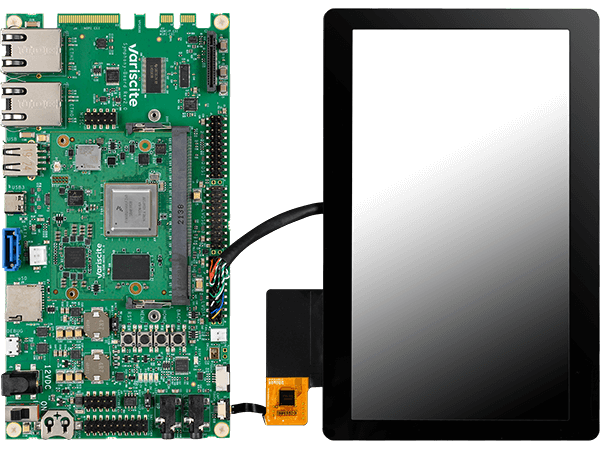

The VAR-SOM-MX8X Development Kit and Starter Kit can serve as a complete development platform for both evaluation and application development purposes. The kits provide a great showcase of the VAR-SOM-MX8X connectivity features and performance.
Specifications
Starter Kit
Development Kit
Display
7" WVGA
Touch Panel
Capacitive
Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Part number
VAR-STK-MX8X
VAR-DVK-MX8X
System on Module
CPU Name
CPU Type
Cortex-A35
CPU Cores
4
CPU Clock
1.2 GHz
RAM
2 GB LPDDR4
eMMC
16 GB
Ethernet
2x GbE PHY
Audio codec
Yes
OS support
Linux / Android
Temperature
-25 to 85°C
Part number
VAR-SOM-MX8XQP_1200C_2048R_16G_AC_EC_TP_ET
Symphony-Board
Carrier Board
SO-DIMM200
Supporting the VAR-SOM-MX8X
LVDS
2x Header, 18-bit / 24-bit
HDMI
DP
eDP
1.4 via display extension board (not included)
DSI
Header
Backlight Driver
PWM Control
Resistive touch panel
4-wire touch panel (4-pin FFC/FPC)
Capacitive touch panel
Capacitive touch panel (6-pin FFC/FPC)
Headphone
3.5 mm connector
Line - in
3.5 mm connector
Digital microphone
on-board
PCI-Express
mini-PCIe connector
VAR-[DVK / STK]-MX8X_[x]O
STK
Starter kit
DVK
Development kit
[x]O
L: Linux, A: Android
