DART-4460
TI OMAP 4 (OMAP4460)

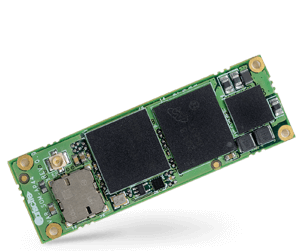

DART-4460: The world's tiniest Cortex-A9 System-on-Module.
The Dart-4460 creates a new world of opportunity for application-specific customization from the lightest tablet to the most compact multi-media system. Variscite customers can now integrate the highest processing power available into their mobile or mechanically constrained devices. With a -40° to 85°C temperature grade, the DART-4460 performance can also be leveraged for industrial applications.
Based on TI's smart multicore OMAP4460 mobile processor, this miniature form System-on-Module carries a cutting-edge multimedia performance with advanced graphics and video capabilities.
Highlights
CPU
Up to 1.5GHz Texas Instruments OMAP4460
Memory
512 - 1024 MB LP-DDR2
Display
HDMI, DSI
Certified WiFi/Bluetooth
802.11 b/g/n+Bluetooth/BLE 4.0
Multimedia
PowerVR SGX540 Accelerated 2D and 3D
Dimensions
52 x 17 mm
Temperature range
-35-85 C
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
Texas Instruments OMAP4460
CPU Type
Cortex™-A9 MPCore™
CPU Cores
2 cores
CPU Clock (Max)
1.5 GHz
RAM
512 - 1024 MB LP-DDR2
eMMC
Up to 8 GB eMMC
Multimedia
2D/3D Graphics Acceleration
PowerVR SGX540 Accelerated 2D and 3D
Video Encode / Decode
1080p30 H.264 Encode / Decode
Camera Interfaces
2x CSI, 1x CPI
Display
HDMI
1.3a 1920 x 1080
Parallel RGB
1400 x 1050 24-bit
DSI
1400 x 1050 24-bit
Touch controller
Capacitive
Audio
Headphone driver
Yes
Microphone
Digital
Digital audio serial interface
S/PDIF
Line In/Out
Yes
Connectivity
SD / MMC
x2
USB Host / Device
USB 2.0 : 1x Host, 1x OTG
UART
x3, up to 3.6 Mbps
I2C
x2
SPI
x2
One-Wire
1 Wire/HDQ
RTC
on-SoM
External Bus
GPMC
Networking
WiFi
802.11 b/g/n
Bluetooth
4.0
Linux
Yes
Android
Yes
Mechanical Specifications
Dimensions (W x L)
52 x 17 mm
Electronic Specifications
Supply voltage
3.3 - 4.5 V
Digital I/O voltage
1.8 V
Environmental Specifications
Commercial temperature
0 to 70°C
Industrial temperature
-35 to 85°C
DART-4460_[xxxx]C_[xxx]R_[xG]_[WB]_[x]T
[xxxx]C:
1200 MHz : 1200C, 1500 MHz : 1500C
[xxxx]R:
1024 MB : 1024R
[xG]:
4 GB : 4G, 8 GB : 8G
[WB]:
WiFi 802.11 b/g/n + Bluetooth 4.0
[x]T:
C: 0 to 70°C, E: -20 to 70°C, I: -35 to 85°C
