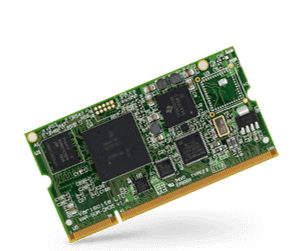

The VAR-SOM-OM35 is a low-power, high-performance System On Module which serves as a building block and easily integrates into any embedded solution. It includes an extensive range of interfaces and communication protocols and is ready to run any embedded operating system such as Linux and Windows Embedded CE.
- Home
System on Module- TI OMAP3530
- VAR-SOM-OM35 TI OMAP3530
VAR-SOM-OM35
TI OMAP3530
Highlights
CPU
Up to 720MHzTexas Instruments OMAP3530 / OMAP3503
Multimedia
PowerVR SGX530 Accelerated 2D and 3D
Display
1400 x 1050 24bit
USB Host / Device
USB 2.0 : 1 x Host, 1 x OTG
Memory
64 - 256MB LP-DDR
Ethernet
10/100 Mbps
Temperature range
-20-85 C
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
Texas Instruments OMAP3530 / OMAP3503
CPU Type
Cortex™-A8
CPU Cores
1 Core
CPU Clock (Max)
720 MHz
DSP
TMS320C64x+ @800 MHz
RAM
64 - 256MB LP-DDR
SLC NAND
256MB SLC NAND
Multimedia
2D/3D Graphics Acceleration
PowerVR SGX530 Accelerated 2D and 3D
Video Encode / Decode
720p H.264 Encode / Decode
Camera Interfaces
1 x CPI
Display
RGB
1400 x 1050 24bit
Touch controller
Resistive, Capacitive (capacitive touch is natively supported through I2C in the base configuration)
Audio
Microphone
Analog
Line In/Out
Yes
Connectivity
USB Host / Device
USB 2.0 : 1 x Host, 1 x OTG
UART
3, up to 3.6 Mbps
I2C
2
SPI
1
One-Wire
1 Wire/HDQ
External Bus
GPMC
Networking
Ethernet
10/100 Mbps
Linux
Yes
Windows Embedded Compact
Yes
Mechanical Specifications
Dimensions (W x L)
67.8 x 35.6 mm
Electronic Specifications
Supply voltage
3.3 V
Digital I/O voltage
1.8 V
Environmental Specifications
Commercial temperature
0 to 70°C
Extended temperature
-20 to 70°C
Extended temperature
-40 to 85°C
VAR-SOM-OM35[xx]_[xxx]C_[xxx]R_[xxx]N_[EC]_[TP]_[x]T_[UH]_[x]O
OM35[xx]:
30 - OMAP3530, 03 - OMAP3503
[xxxx]C:
600 - 600MHz, 720MHz
[x]R:
DDR Size: 64,128,256 MB
[xxx]N:
Nand flash size: 256, 512MB
[EC]:
Ethernet Controller
[TP]:
Touch panel controller.
Note: Capacitive touch is natively supported through I2C in the base configuration
Note: Capacitive touch is natively supported through I2C in the base configuration
[x]T:
C - Commercial Temperatures, E - Extended Temperatures, I - Industrial Temperatures
[UH]:
USB 2.0 Host controller
[x]O:
C - CE EBoot, L - Linux Uboot
