VAR-SOM-MX91
Evaluation Kits

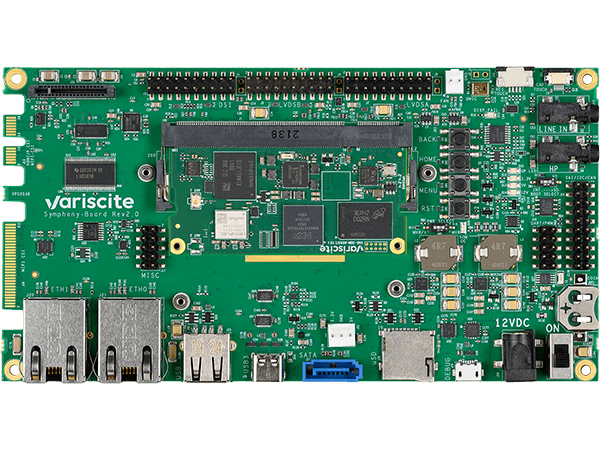

The VAR-SOM-MX91 Starter Kit can serve as a complete development platform for both evaluation and application development purposes. The kits provide a great showcase of the VAR-SOM-MX91 connectivity features and performance.
Specifications
Starter Kit
Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Antena
Boot/Rescue SD Cards
Carrier Board Design Package
Part Number
VAR-STK-VS91
System on Module
CPU Name
NXP i.MX91
CPU Type
Cortex™-A55
CPU Cores
1
CPU Clock
1.4GHz
RAM
2 GB LPDDR4
eMMC
16 GB
Ethernet
2x 10/100/1000 Mbps
Wi-Fi
Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4
Bluetooth
BT/BLE5.4
LVDS
No
Audio codec
Yes
Touch panel
Resistive, Capacitive
OS support
Linux
Temperature
-25 to 85°C
CAN Bus
x2
Part number
VAR-SOM-MX91S_1400C_2048R_16G_AC_EC_TP_WBD_ET
Symphony-Board
Carrier Board
SO-DIMM200
Supporting the VAR-SOM-MX91
Headphone
3.5 mm connector
Line – in
3.5 mm connector
Digital microphone
on-board
SD-CARD
SD Card Socket
CAN Bus
CAN/CAN-FD (Flexible Data-Rate)
Ethernet
2x 10/100/1000 Mbps, RJ45
VAR-STK-VS91_LO
STK
STK: Starter kit
