Specifications

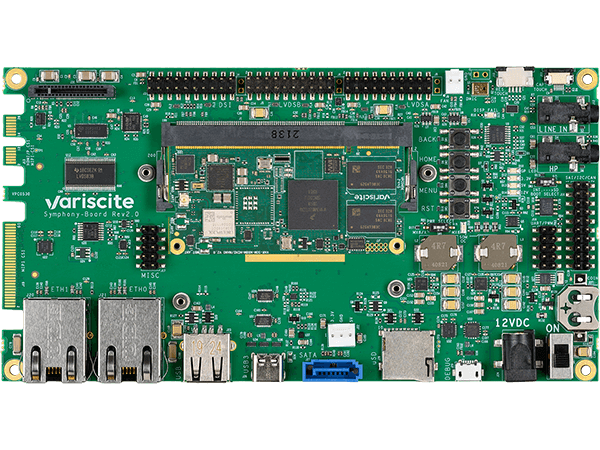

Starter Kit

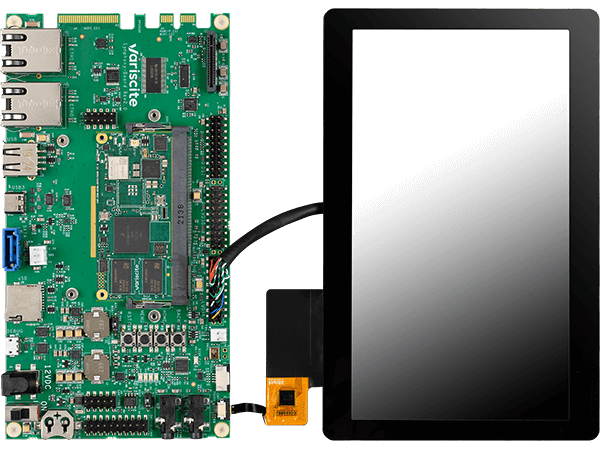

Development Kit
Included SOM

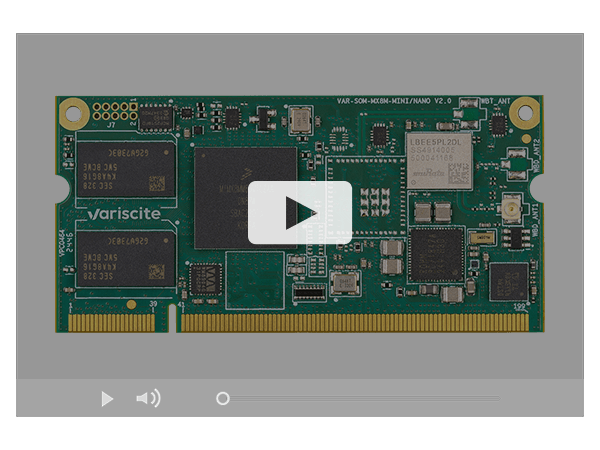

VAR-SOM-MX8M-MINI
VAR-SOM-MX8M-MINI
Included Carrier Board
Symphony-Board
Symphony-Board
Display

7" WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Antenna
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Camera Module

Optional - VCAM-5640S-1ST, VCAM-AR1335B , VCAM-AR1335E

Optional - VCAM-5640S-1ST, VCAM-AR1335B , VCAM-AR1335E

Part number

VAR-STK-VS8M-MINI

VAR-DVK-VS8M-MINI

System on Module
CPU Name

NXP i.MX8M Mini

CPU Type

Cortex™-A53

CPU Cores

4

CPU Clock

1.8 GHz

RAM

2 GB DDR4

eMMC

16 GB

Ethernet

GbE PHY

Wi-Fi

Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n

Bluetooth

5.4 / BLE

LVDS

18-bit / 24-bit

Audio codec

Yes

OS support

Linux / Android

Temperature

0 to 70°C

CAN Bus

x1

Part number

VAR-SOM-MX8MMQ_V2_1800C_2048R_16G_AC_EC_LD_TP_CN_WBD_CT

More Info
Symphony-Board
Carrier Board
SO-DIMM200

Supporting the VAR-SOM-MX8M-MINI

LVDS

18-bit / 24-bit

Backlight Driver

PWM Control

Resistive touch panel

4-wire touch panel (4-pin FFC/FPC)

Capacitive touch panel

Capacitive touch panel (6-pin FFC/FPC)

Headphone

3.5 mm connector

Line - in

3.5 mm connector

Digital microphone

on-board

PCI-Express

mini-PCIe connector

SD-CARD

SD Card Socket

CAN Bus

x1

Ethernet

10/100/1000 Mbps, RJ45

zoom
VAR-[STK / DVK]-VS8M-MINI-V2_[x]O
STK/DVK

STK: Starter kit
DVK: Development kit

[x]O

L: Linux, A: Android
